The phenotypic evaluation of hips done by the Orthopedic Foundation for Animals falls into seven different categories. Those categories are normal (Excellent, Good, Fair), Borderline, and dysplastic (Mild, Moderate, Severe). Once each of the radiologists classifies the hip into one of the 7 phenotypes above, the final hip grade is decided by a consensus of the 3 independent outside evaluations. Examples would be:
The hip grades of excellent, good and fair are within normal limits and are given OFA numbers. This information is accepted by AKC on dogs with permanent identification (tattoo, microchip) and is in the public domain. Radiographs of borderline, mild, moderate and severely dysplastic hip grades are reviewed by the OFA radiologist and a radiographic report is generated documenting the abnormal radiographic findings. Unless the owner has chosen the open database, dysplastic hip grades are not in the public domain.

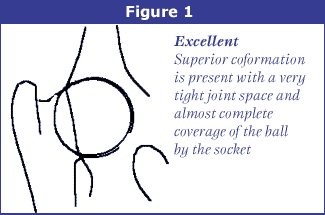

Excellent (Figure 1): this classification is assigned for superior conformation in comparison to other animals of the same age and breed. There is a deep seated ball (femoral head) which fits tightly into a well-formed socket (acetabulum) with minimal joint space. There is almost complete coverage of the socket over the ball.
Good (Figure 2): slightly less than superior but a well-formed congruent hip joint is visualized. The ball fits well into the socket and good coverage is present.
Fair (Figure 3): Assigned where minor irregularities in the hip joint exist. The hip joint is wider than a good hip phenotype. This is due to the ball slightly slipping out of the socket causing a minor degree of joint incongruency. There may also be slight inward deviation of the weight-bearing surface of the socket (dorsal acetabular rim) causing the socket to appear slightly shallow (Figure 4). This can be a normal finding in some breeds however, such as the Chinese Shar Pei, Chow Chow, and Poodle.
Borderline: there is no clear cut consensus between the radiologists to place the hip into a given category of normal or dysplastic. There is usually more incongruency present than what occurs in the minor amount found in a fair but there are no arthritic changes present that definitively diagnose the hip joint being dysplastic. There also may be a bony projection present on any of the areas of the hip anatomy illustrated above that can not accurately be assessed as being an abnormal arthritic change or as a normal anatomic variant for that individual dog. To increase the accuracy of a correct diagnosis, it is recommended to repeat the radiographs at a later date (usually 6 months). This allows the radiologist to compare the initial film with the most recent film over a given time period and assess for progressive arthritic changes that would be expected if the dog was truly dysplastic. Most dogs with this grade (over 50%) show no change in hip conformation over time and receive a normal hip rating; usually a fair hip phenotype.

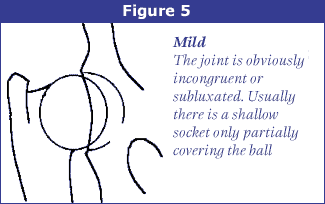

Mild Canine Hip Dysplasia (Figure 5): there is significant subluxation present where the ball is partially out of the socket causing an incongruent increased joint space. The socket is usually shallow only partially covering the ball. There are usually no arthritic changes present with this classification and if the dog is young (24 to 30 months of age), there is an option to resubmit an radiograph when the dog is older so it can be reevaluated a second time. Most dogs will remain dysplastic showing progression of the disease with early arthritic changes. Since HD is a chronic, progressive disease, the older the dog, the more accurate the diagnosis of HD (or lack of HD).
Moderate Canine Hip Dysplasia: there is significant subluxation present where the ball is barely seated into a shallow socket causing joint incongruency. There are secondary arthritic bone changes usually along the femoral neck and head (termed remodeling), acetabular rim changes (termed osteophytes or bone spurs) and various degrees of trabecular bone pattern changes called sclerosis. Once arthritis is reported, there is only continued progression of arthritis over time.

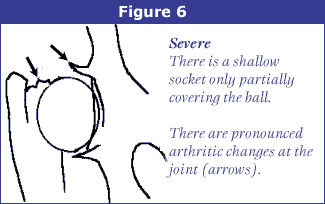

Severe HD (Figure 6): assigned where radiographic evidence of marked dysplasia exists. There is significant subluxation present where the ball is partly or completely out of a shallow socket. Like moderate HD, there are also large amounts of secondary arthritic bone changes along the femoral neck and head, acetabular rim changes and large amounts of abnormal bone pattern changes.
|
OFA |
FCI (European) |
BVA (UK/Australia) |
SV (Germany) |
|---|---|---|---|
|
E (Excellent)
|
A-1
|
0-4 (no >
3/hip)
|
Normal
|
|
G (Good)
|
A-2
|
5-10 (no >
6/hip)
|
Normal
|
|
F (Fair)
|
B-1
|
11-18
|
Normal
|
|
B (Borderline)
|
B-2
|
19-25
|
Fast Normal
|
|
M (Mild)
|
C
|
26-35
|
Noch Zugelassen
|
|
Mod (Moderate)
|
D
|
36-50
|
Mittlere
|
|
S (Severe)
|
E
|
51-106
|
Schwere
|
What can breeders do?
--------------------------------------------------------------------------------
Hip dysplasia appears to be perpetuated by breeder imposed breeding practices, but when breeders and their breed clubs recognize HD as a problem and establish reduction of HD as a priority, improvement of the hip status can be accomplished without jeopardizing other desirable traits. Prospective buyers should check pedigrees and/or verify health issues with the breeder. If suitable documentation is not available, assume the worst until proven otherwise.
Do not ignore the dog with a fair hip evaluation. The dog is still within normal limits. For example; a dog with fair hips but with a strong hip background and over 75% of its brothers and sisters being normal is a good breeding prospect. A dog with excellent hips, but with a weak family background and less than 75% of its brothers and sisters being normal is a poor breeding prospect.
OFA's Recommended Breeding Principals
Breed normals to normals
Breed normals with normal ancestry
Breed normals from litters (brothers/sisters) with a low incidence of HD
Select a sire that produces a low incidence of HD
Replace dogs with dogs that are better than the breed average
General
Information
Radiation Safety
Mailing Recommendations
OFA's Handling procedures
Accuracy of Data
Other Radiographic Findings
The radiograph film must be permanently identified with the animal's registration number or name, date the radiograph was taken, and the veterinarian's name or hospital name. If this required information is illegible or missing, the OFA cannot accept the film for registration purposes. The owner should complete and sign the OFA application. It is important to record on the OFA application the animal's tattoo or microchip number in order for the OFA to submit results to the AKC. Sire and dam information should also be present.
Radiography of pregnant or estrus females should be avoided due to possible increased joint laxity (subluxation) from hormonal variations. OFA recommends radiographs be taken one month after weaning pups and one month before or after a heat cycle. Physical inactivity because of illness, weather, or the owner's management practices may also result in some degree of joint laxity. The OFA recommends evaluation when the dog is in good physical condition.
Chemical restraint (anesthesia) is not required by OFA but chemical restraint to the point of muscle relaxation is recommended. With chemical restraint optimum patient positioning is easier with minimal repeat radiographs (less radiation exposure) and a truer representation of the hip status is obtained.
For large and giant breed dogs, 14" x 17" film size is recommended. Small film sizes can be used for smaller breeds if the area between the sacrum and the stifles can be included.
If a copy is necessary ask your veterinarian to insert 2 films in the cassette prior to making the exposure. This will require about a 15% increase in the kVp to make an exact duplicate of the radiograph sent to OFA. Films may be returned if a $5.00 fee and request for return are both included at time of submission.
Good contrast is desirable (high mAs, low kVp). Grid techniques are recommended for all large dogs.
Radiographs of animals 24 months of age or older are independently evaluated
by three randomly selected, board-certified veterinary radiologists from a pool
of 20 to 25 consulting radiologists throughout the USA in private practice and
academia. Each radiologist evaluates the animal's hip status considering the
breed, sex, and age. There are approximately 9 different anatomic areas of the
hip that are evaluated (Figure 1).
The radiologist is concerned with deviations in these structures from the breed normal. Congruency and confluence of the hip joint (degree of fit) are also considered which dictate the conformation differences within normal when there is an absence of radiographic findings consistent with HD. The radiologist will grade the hips with one of seven different physical (phenotypic) hip conformations: normal which includes excellent, good, or fair classifications, borderline or dysplastic which includes mild, moderate, or severe classifications.
Seven classifications are needed in order to establish heritability information (indexes) for a given breed of dog. Definition of these phenotypic classifications are as follows:
(See What Do Hip Grades Mean for more detail on the classifications)
The hip grades of excellent, good and fair are within normal limits and are given OFA numbers. This information is accepted by AKC on dogs with permanent identification and is in the public domain. Radiographs of borderline, mild, moderate and severely dysplastic hip grades are reviewed by the OFA radiologist and a radiographic report is generated documenting the abnormal radiographic findings. Unless the owner has chosen the open database, dysplastic hip grades are closed to public information.
Transitional vertebrae are a congenital malformation of the spine that occur at the junctions of major divisions of the spine (usually between the thoracic and lumbar vertebral junction and the lumbar and sacral vertebral junction). Transitional vertebrae take on anatomic characteristics of both divisions of the spine it occurs between. The most common type of transitional vertebrae in dogs is in the lumbo-sacral area where the last lumbar vertebral body takes on anatomic characteristics of the sacrum. Transitional vertebrae are usually not associated with clinical signs and the dog can be used in a breeding program. The OFA recommends breeding the dog to another dog that does not have transitional vertebrae.
Spondylosis is another incidental radiographic finding where smooth new bone production is visualized between vertebral bodies at the intervertebral disc spaces. The new bone production can vary in extent from formation of small bone spurs to complete bridging of adjacent vertebral bodies. Spondylosis may occur secondary to spinal instability but often it is of unknown cause and clinically insignificant. A familial basis for its development has been reported. Like transitional vertebrae, dogs with spondylosis can be used in a breeding program.
